PA47
PIPER PA-47 PiperJet
PIPER PA-47 PiperJet
Aircraft
Name
PA-47 PiperJet
Manufacturer
Body
Narrow
Wing
Fixed Wing
Position
Low wing (winglets)
Tail
Regular tail, low set
WTC
L
Type Code
L1J
Engine
Jet
Engine Count
Single
Position
Above rear fuselage
Landing gear
Tricycle retractable
Manufactured as
Cite This Page
SKYbrary Aviation Safety. (March 8, 2021). PA47.
Retrieved June 4, 2026
from https://skybrary.aero/aircraft/pa47
UID: 17999
Copied!
COPY
PA47

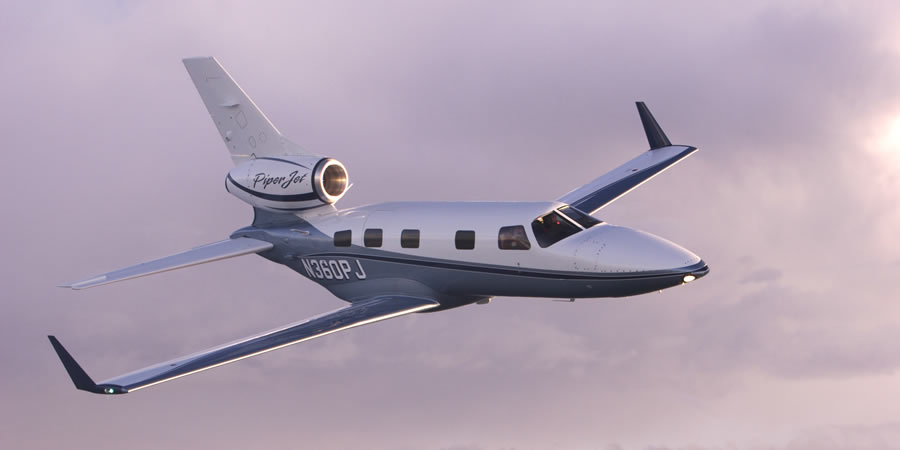

The Piper PA-47 PiperJet is a single-engined very light jet, with a straight duct air intake design for the vertical stabilizer (tail) mounted engine.
Technical Data
Wing span (metric)
13.49 m
Length (metric)
10.87 m
Height (metric)
4.78 m
Powerplant
1 x Williams FJ44-3AP turbofan.
Engine Model(s)
Williams FJ44
Indicative Performance Data
Take-Off
V2
n/a
Distance
n/a
MTOW
n/a
Initial Climb (to 5000 ft)
IAS
n/a
ROC
n/a
Initial Climb (to FL150)
IAS
n/a
ROC
n/a
Initial Climb (to FL240)
IAS
n/a
ROC
n/a
MACH Climb
MACH
n/a
ROC
n/a
Cruise
TAS
360 kts
MACH
n/a
Ceiling
390
Range
1300 NM
Initial Descent (to FL240)
MACH
n/a
ROD
n/a
Descent (to FL100)
IAS
n/a
ROD
n/a
Descent (FL100 & below)
IAS
n/a
MCS
n/a
ROD
n/a
Approach
Vapp (IAS)
n/a
Distance
n/a
