E75L
EMBRAER ERJ 170-200 (long wing)
EMBRAER ERJ 170-200 (long wing)
Aircraft
Name
ERJ 170-200 (long wing)
Manufacturer
Body
Narrow
Wing
Fixed Wing
Position
Low wing (winglets)
Tail
Regular tail (Dihedral)
WTC
M
APC
C
Type Code
L2J
Engine
Jet
Engine Count
Multi
Position
Underwing mounted
Landing gear
Tricycle retractable
Manufactured as
Cite This Page
SKYbrary Aviation Safety. (May 6, 2021). E75L.
Retrieved June 4, 2026
from https://skybrary.aero/aircraft/e75l
UID: 17829
Copied!
COPY

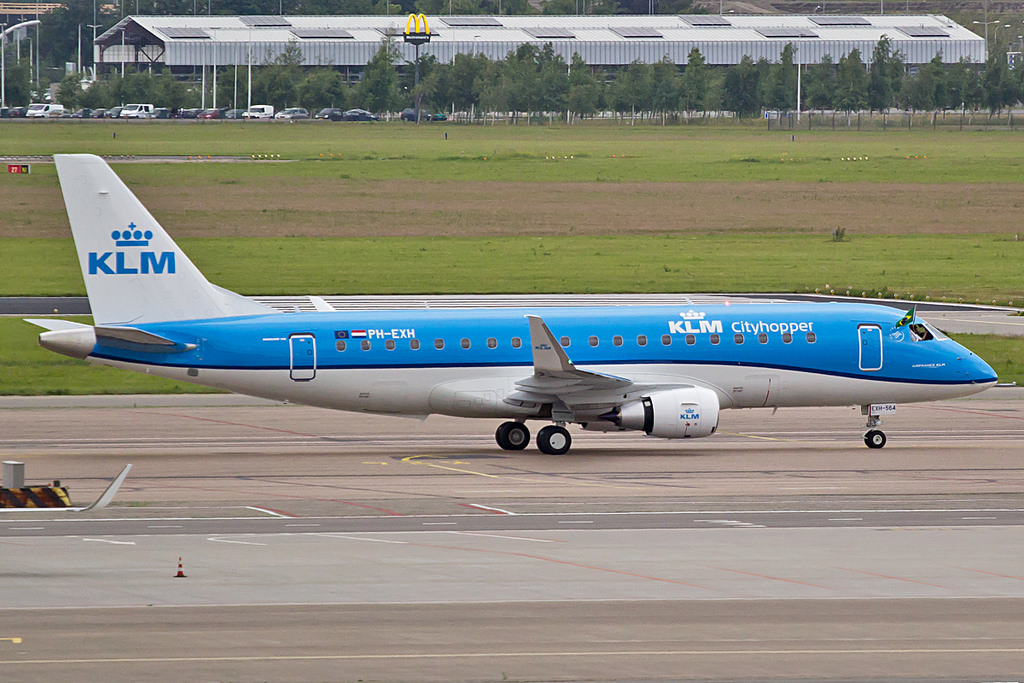

E75L
A stretched version of the ERJ 170-100. In service since 2005. Slightly larger wingspan compared to ERJ 170-200 (short wing) due to extended wingtip.

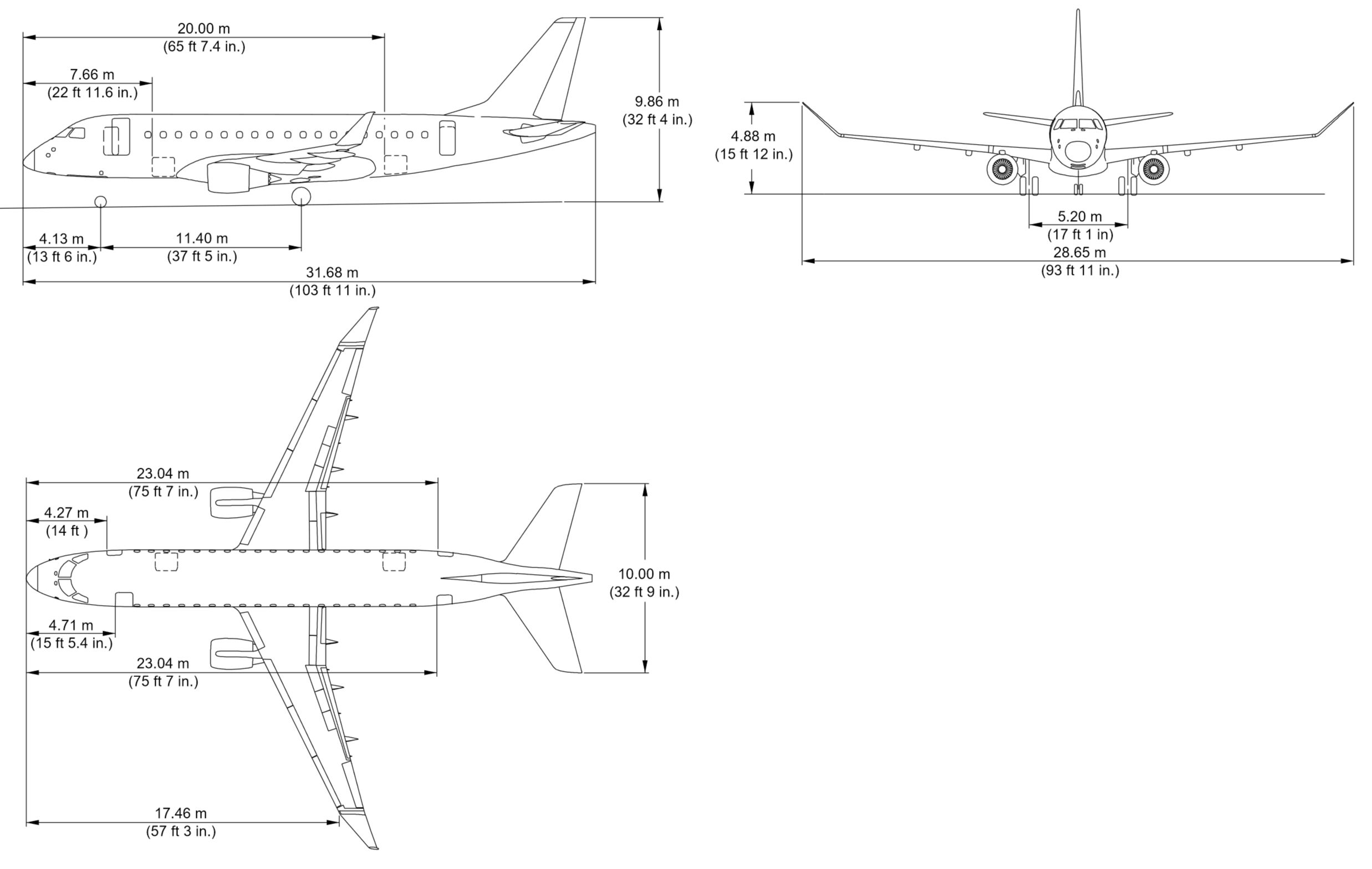

Technical Data
Wing span (metric)
28.65 m
Length (metric)
31.68 m
Height (metric)
9.86 m
Powerplant
2 x GE CF34-8E turbofans, 62.3 kN thrust each.
Engine Model(s)
General Electric CF34
Indicative Performance Data
Take-Off
V2
n/a
Distance
2244 m
MTOW
40370 kg
Initial Climb (to 5000 ft)
IAS
n/a
ROC
n/a
Initial Climb (to FL150)
IAS
n/a
ROC
n/a
Initial Climb (to FL240)
IAS
n/a
ROC
n/a
MACH Climb
MACH
n/a
ROC
n/a
Cruise
TAS
n/a
MACH
0.78
Ceiling
410
Range
2200 NM
Initial Descent (to FL240)
MACH
n/a
ROD
n/a
Descent (to FL100)
IAS
n/a
ROD
n/a
Descent (FL100 & below)
IAS
n/a
MCS
n/a
ROD
n/a
Approach
Vapp (IAS)
n/a
Distance
1271 m
