B505
BELL B-505 Jet Ranger X
BELL B-505 Jet Ranger X
Aircraft
Name
B-505 Jet Ranger X
Manufacturer
Body
Narrow
Wing
Rotary
Position
Two-blade main rotor
Tail
Two-blade tail rotor
WTC
L
APC
A
Type Code
H1T
Engine
Turboshaft
Engine Count
Single
Position
Above cabin
Landing gear
Skids
Manufactured as
Cite This Page
SKYbrary Aviation Safety. (March 8, 2021). B505.
Retrieved June 4, 2026
from https://skybrary.aero/aircraft/b505
UID: 17631
Copied!
COPY
B505

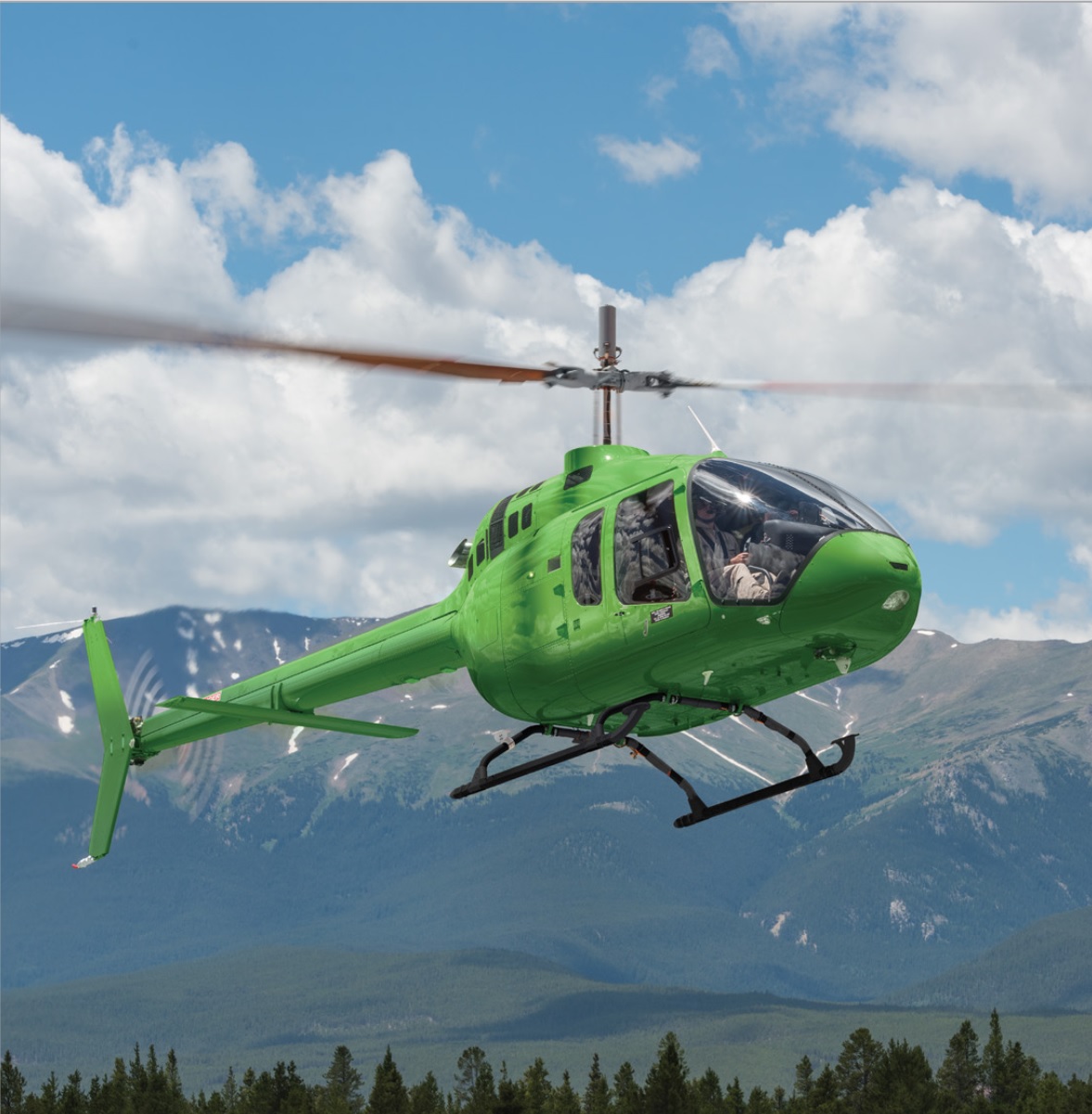

The Bell 505 Jet Ranger X is a single-engine glass cockpit light helicopter built by Bell Helicopter.

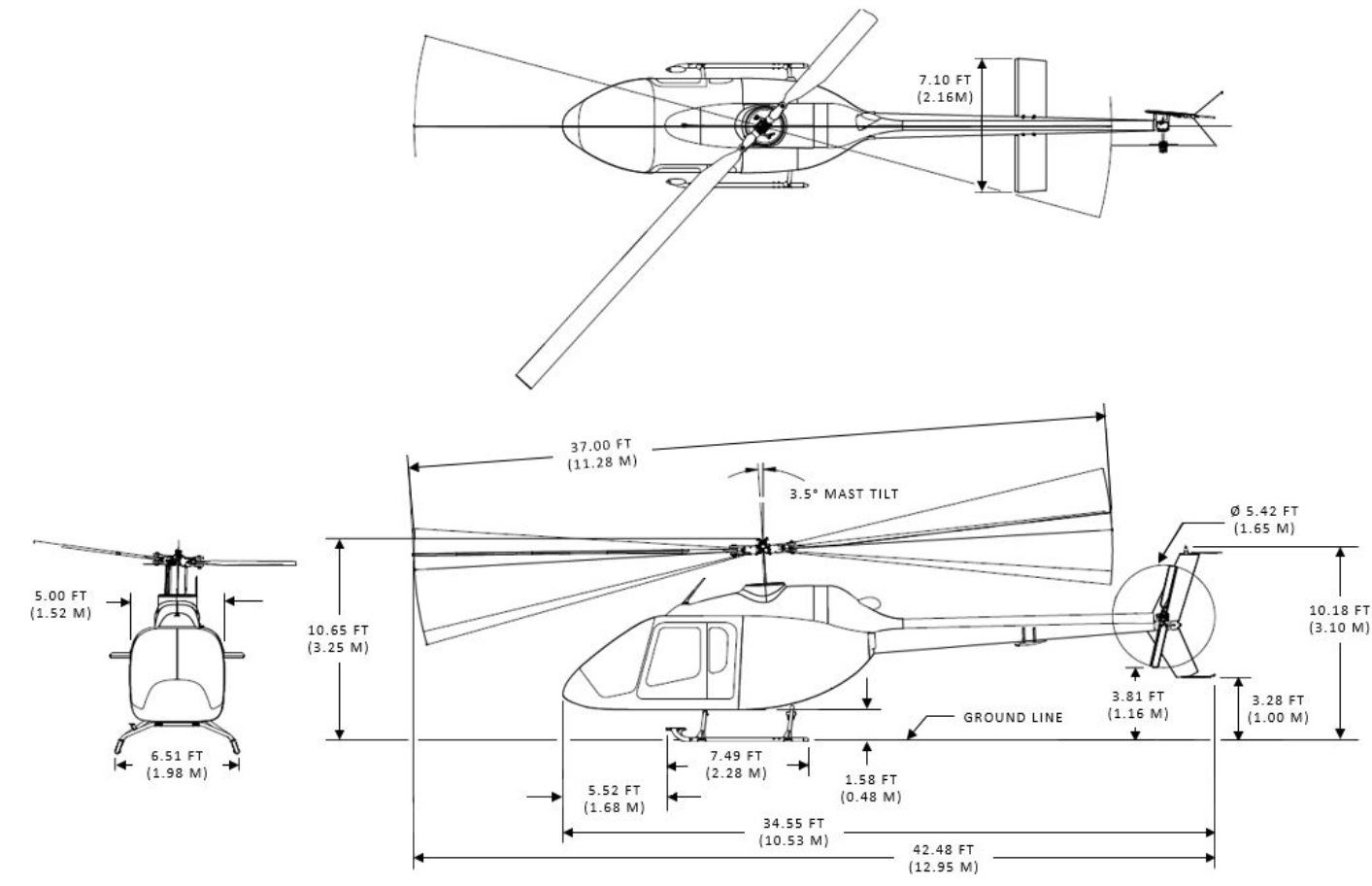

Technical Data
Wing span (metric)
11.28 m
Length (metric)
12.95 m
Height (metric)
3.25 m
Powerplant
1 x Safran HE Arrius 2R gas turbo-shaft, 505 shp (377 kW)
Indicative Performance Data
Take-Off
V2
n/a
Distance
n/a
MTOW
1669 kg
Initial Climb (to 5000 ft)
IAS
n/a
ROC
n/a
Initial Climb (to FL150)
IAS
n/a
ROC
n/a
Initial Climb (to FL240)
IAS
n/a
ROC
n/a
MACH Climb
MACH
n/a
ROC
n/a
Cruise
TAS
104 kts
MACH
n/a
Ceiling
200
Range
345 NM
Initial Descent (to FL240)
MACH
n/a
ROD
n/a
Descent (to FL100)
IAS
n/a
ROD
n/a
Descent (FL100 & below)
IAS
n/a
MCS
n/a
ROD
n/a
Approach
Vapp (IAS)
n/a
Distance
n/a
