B430
BELL B-430
BELL B-430
Aircraft
Name
B-430
Manufacturer
Wing
Rotary
Position
Four-blade main rotor
Tail
Two-blade tail rotor
WTC
L
Type Code
H2T
Engine
Turboshaft
Engine Count
Multi
Position
Above cabin
Landing gear
Skids or tricycle retractable
Manufactured as
BELL 430
Cite This Page
SKYbrary Aviation Safety. (March 8, 2021). B430.
Retrieved June 3, 2026
from https://skybrary.aero/aircraft/b430
UID: 17625
Copied!
COPY
B430

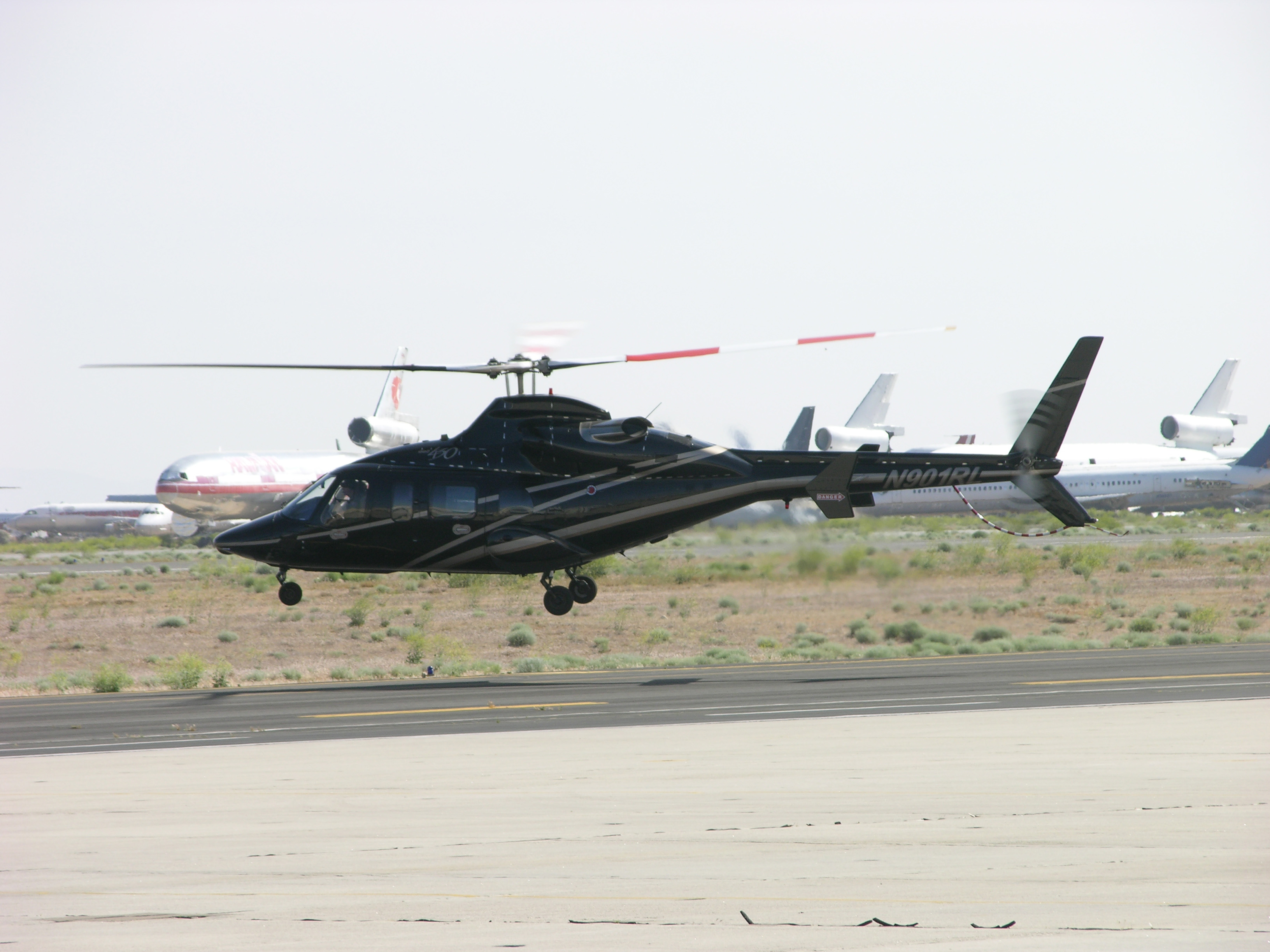

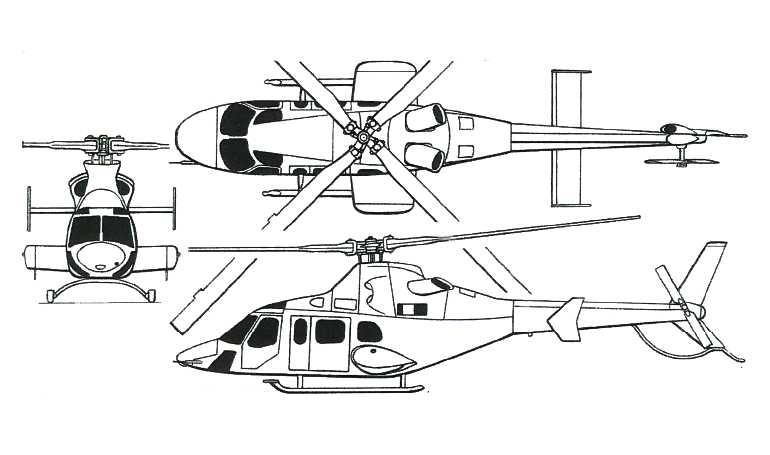

The Bell 430 is a twin-engined light-medium helicopter built by Bell Helicopter Textron. It is a stretched and more powerful development of the Bell 230, which, in turn, was based on the earlier Bell 222.
Technical Data
Wing span (metric)
12.80 m
Length (metric)
13.44 m
Height (metric)
3.73 m
Powerplant
2 x Rolls-Royce 250-C40B 783 hp (584 kW).
Engine Model(s)
Rolls-Royce 250
Indicative Performance Data
Take-Off
V2
n/a
Distance
n/a
MTOW
4218 kg
Initial Climb (to 5000 ft)
IAS
60 kts
ROC
1400 ft/min
Initial Climb (to FL150)
IAS
n/a
ROC
n/a
Initial Climb (to FL240)
IAS
n/a
ROC
n/a
MACH Climb
MACH
n/a
ROC
n/a
Cruise
TAS
130 kts
MACH
n/a
Ceiling
146
Range
324 NM
Initial Descent (to FL240)
MACH
n/a
ROD
n/a
Descent (to FL100)
IAS
130 kts
ROD
1000 ft/min
Descent (FL100 & below)
IAS
n/a
MCS
n/a
ROD
n/a
Approach
Vapp (IAS)
40 kts
Distance
n/a
