A338
AIRBUS A-330-800
AIRBUS A-330-800
Aircraft
Name
A-330-800
Manufacturer
Body
Wide
Wing
Fixed Wing
Position
Low wing
Tail
Regular tail, mid set
WTC
H
APC
C
Type Code
L2J
Engine
Jet
Engine Count
Multi
Position
Underwing mounted
Landing gear
Tricycle retractable
Manufactured as
Cite This Page
SKYbrary Aviation Safety. (May 26, 2024). A338.
Retrieved June 3, 2026
from https://skybrary.aero/aircraft/a338
UID: 34786
Copied!
COPY
A338

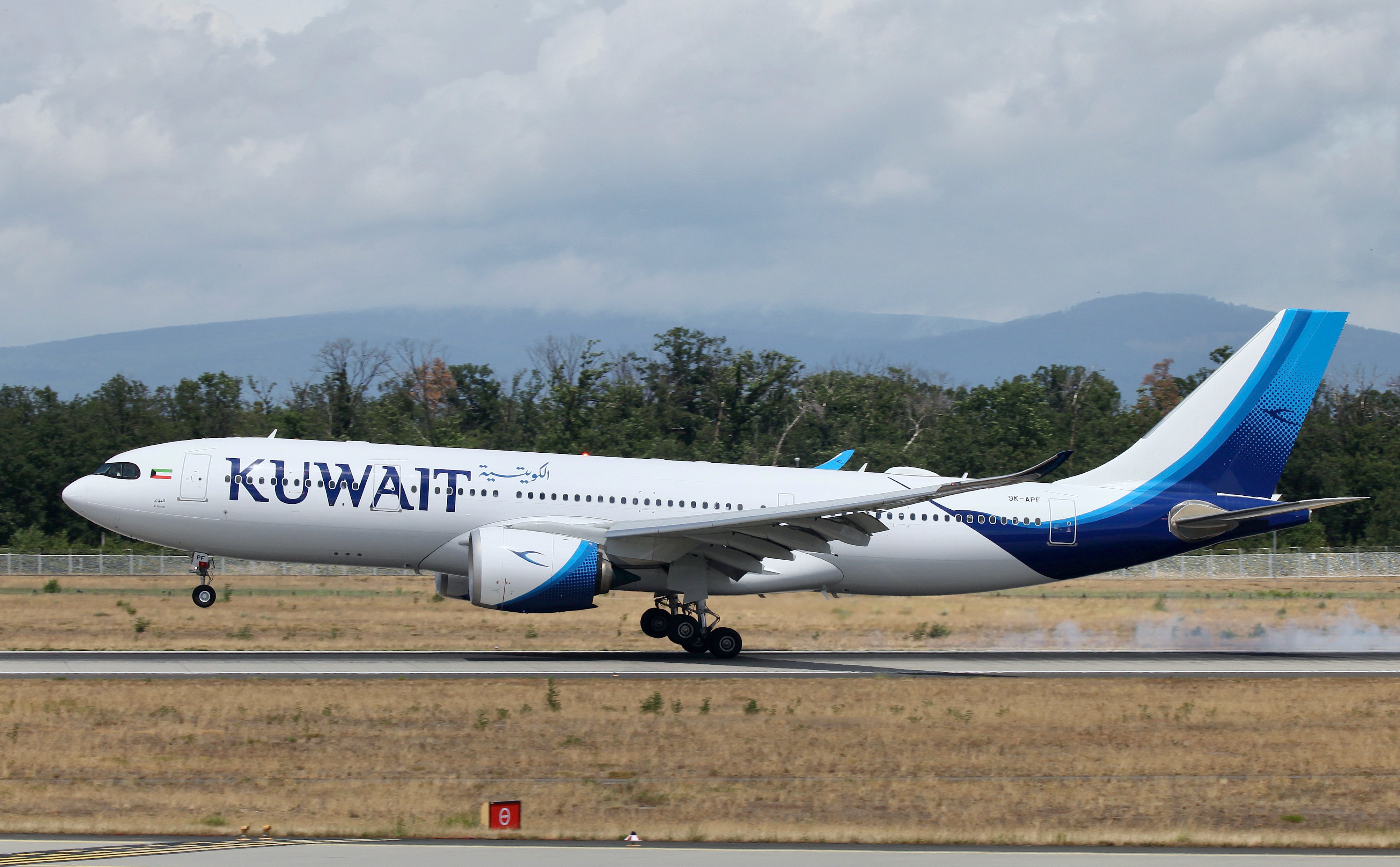

Large capacity long range airliner. The A330-800 is one of the versions of the A330neo (new engine option), the other being the A330-900. In service since 2020.
The A330neo offers new generation high-bypass ratio engines and improved wing aerodynamics. The A330-800 retains the fuselage length of the A330-200.
The Airbus A330-800 is part of the A330 aircraft family.

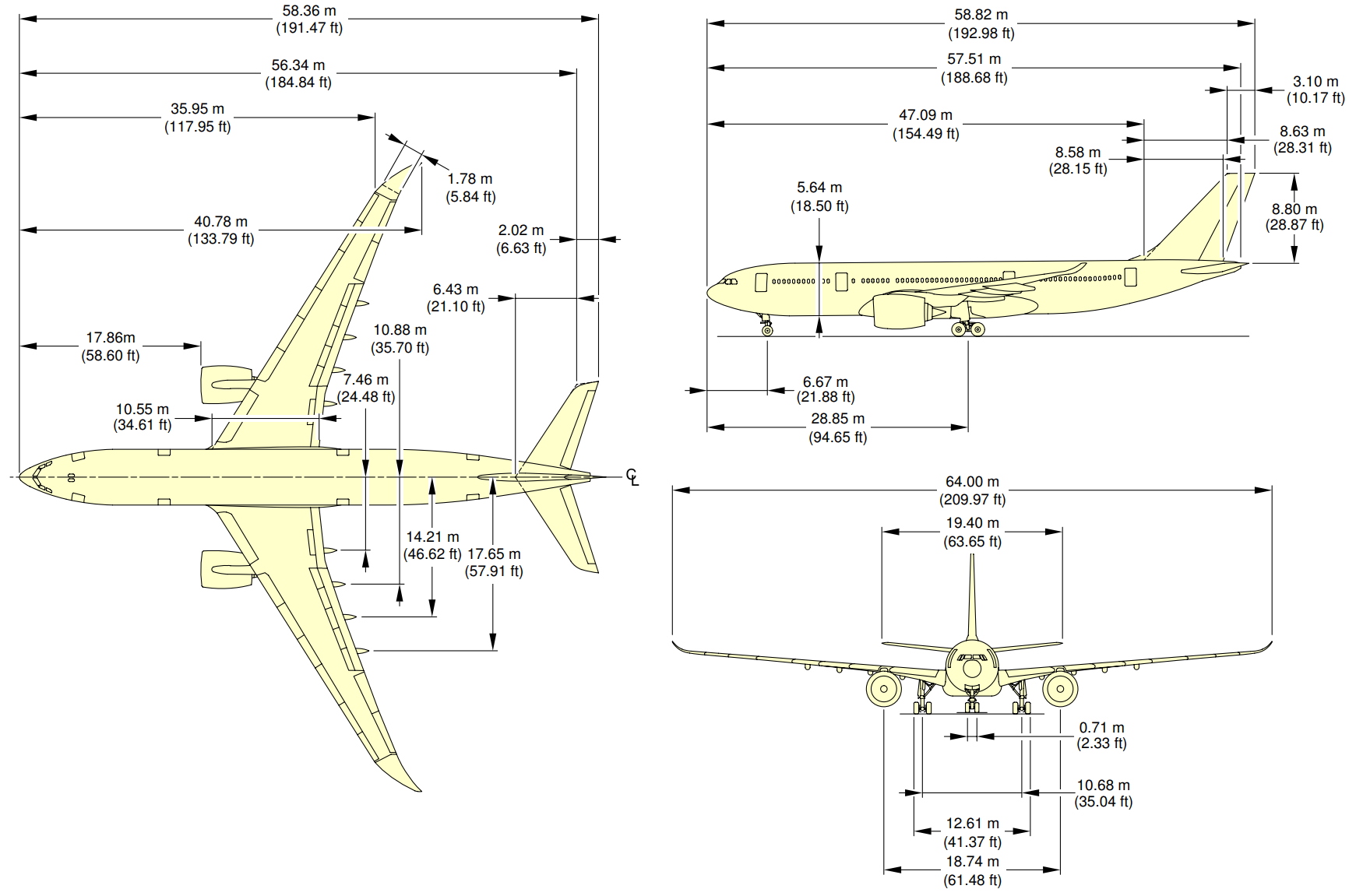

Technical Data
Wing span (metric)
64.00 m
Length (metric)
58.82 m
Height (metric)
17.92 m
Powerplant
2 x R-R Trent 7000-72 (324kN)
Engine Model(s)
Rolls-Royce Trent 7000
Indicative Performance Data
Take-Off
V2
145 kts
Distance
2300 m
MTOW
251000 kg
Initial Climb (to 5000 ft)
IAS
175 kts
ROC
2000 ft/min
Initial Climb (to FL150)
IAS
290 kts
ROC
1500
Initial Climb (to FL240)
IAS
290 kts
ROC
1200 ft/min
MACH Climb
MACH
0.80
ROC
1000 ft/min
Cruise
TAS
475 kts
MACH
0.81
Ceiling
410
Range
8150 NM
Initial Descent (to FL240)
MACH
0.81
ROD
1500 ft/min
Descent (to FL100)
IAS
290 kts
ROD
3000 ft/min
Descent (FL100 & below)
IAS
220 kts
MCS
200 kts
ROD
1500 ft/min
Approach
Vapp (IAS)
140 kts
Distance
1850 m
